Rotary Encoder

Rotary encoder, also called a shaft encoder, is an electro mechanical device that converts the angular position or motion of a shaft or axle to an analog or digital code.There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the current position of the shaft, making them angle transducers. The output of incremental encoders provides information about the motion of the shaft, which is typically further processed elsewhere into information such as speed, distance, and position.

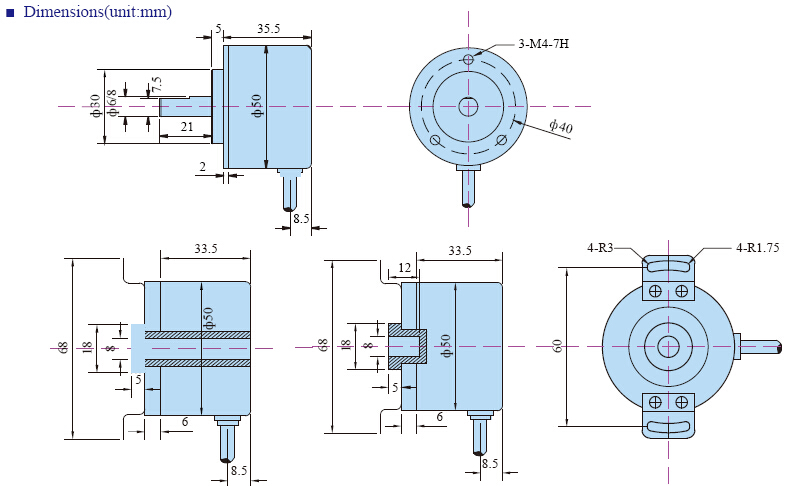

Out diameterΦ50
ShaftΦ6/8 x 10mm
Cable outgoing ,2 meters length
Output Frequency MAX 100 KHz
Max Speed :5000 RPM
Protection :IP 54
