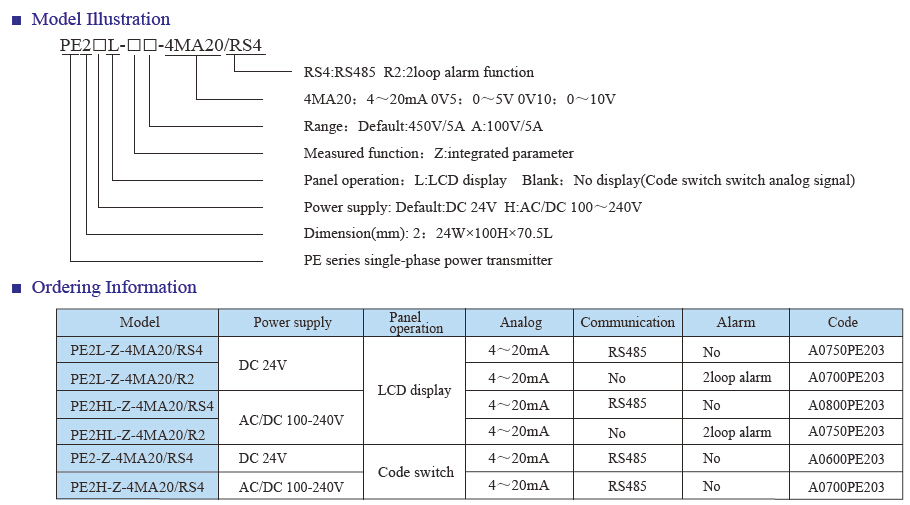

Model: PE Single-phase Power Isolation Transmitter with Full-parameter
24mm wide,ultra small volume din rail mounting.
With LCD display function,it`s convenient to spot debugging and observe measured value.
Measure single-phase voltage,single-phase current,power factor,active power,reactive power, appearant power and active energy.
Measured range：Voltage 5～450V，Current 0.015～5A，above 5A with extra transfor to cooperate current ratio Ct.
1loop programable analog output function（DC：4～20mA）
Optional 2loop alarm output function.
Optional 1loop RS485 communication function with international & universal MODBUS-RTU procotol（Only one choose between the communication and alarm function）
Voltage,current input signal adopt electromagnetic isolation technology,to effectively guarantee the high-reliability.
With LCD display function,it`s convenient to spot debugging and observe measured value.
Measure single-phase voltage,single-phase current,power factor,active power,reactive power, appearant power and active energy.
Measured range：Voltage 5～450V，Current 0.015～5A，above 5A with extra transfor to cooperate current ratio Ct.
1loop programable analog output function（DC：4～20mA）
Optional 2loop alarm output function.
Optional 1loop RS485 communication function with international & universal MODBUS-RTU procotol（Only one choose between the communication and alarm function）
Voltage,current input signal adopt electromagnetic isolation technology,to effectively guarantee the high-reliability.
