Model: PT Seires Signal Isolator
Isolation transmitter & safety barrier combines isolating, signal conversion, micromation and high-reliability as a whole,which solves various problems in control system such as signal collecting safety,signal conversion,anti-interference,ect. It is widely used in automatic field such as rail transport, electricity,communication,instrumentation monitoring, etc.
With LCD display & key operation function,to convenient to set field parameters.

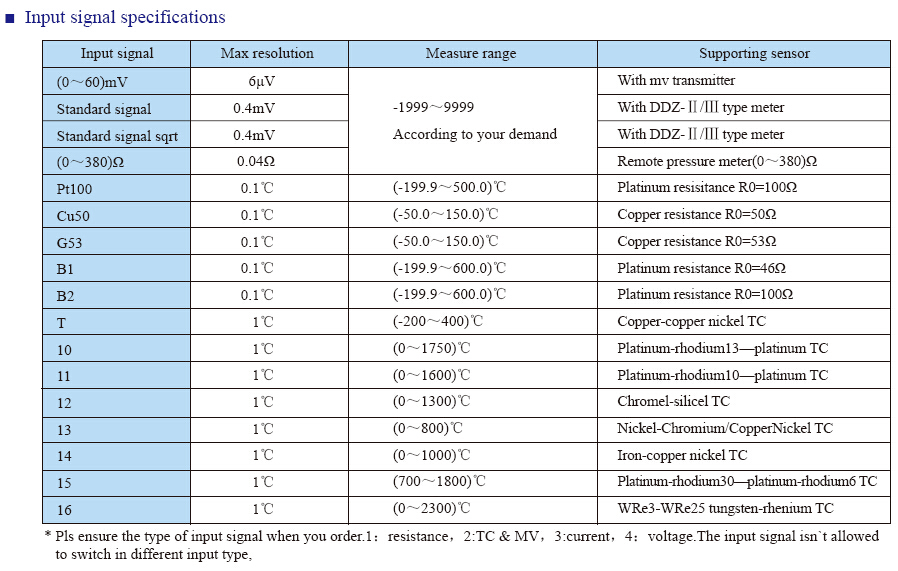

Optional 4～20mA、0～10V、0～400Ω、TC、RTD and etc signal
1 input 2 output,2 input 2 output,1 input 1 output and etc various combination way of analog
Menu can switch signal input.
RS485 communication
Measuring signal adopt photoeletric isolation technology.
Optional 1loop alarm output of free setting.
With LCD display & key operation function,to convenient to set field parameters.
Optional 4～20mA、0～10V、0～400Ω、TC、RTD and etc signal
1 input 2 output,2 input 2 output,1 input 1 output and etc various combination way of analog
Menu can switch signal input.
RS485 communication
Measuring signal adopt photoeletric isolation technology.
Optional 1loop alarm output of free setting.
